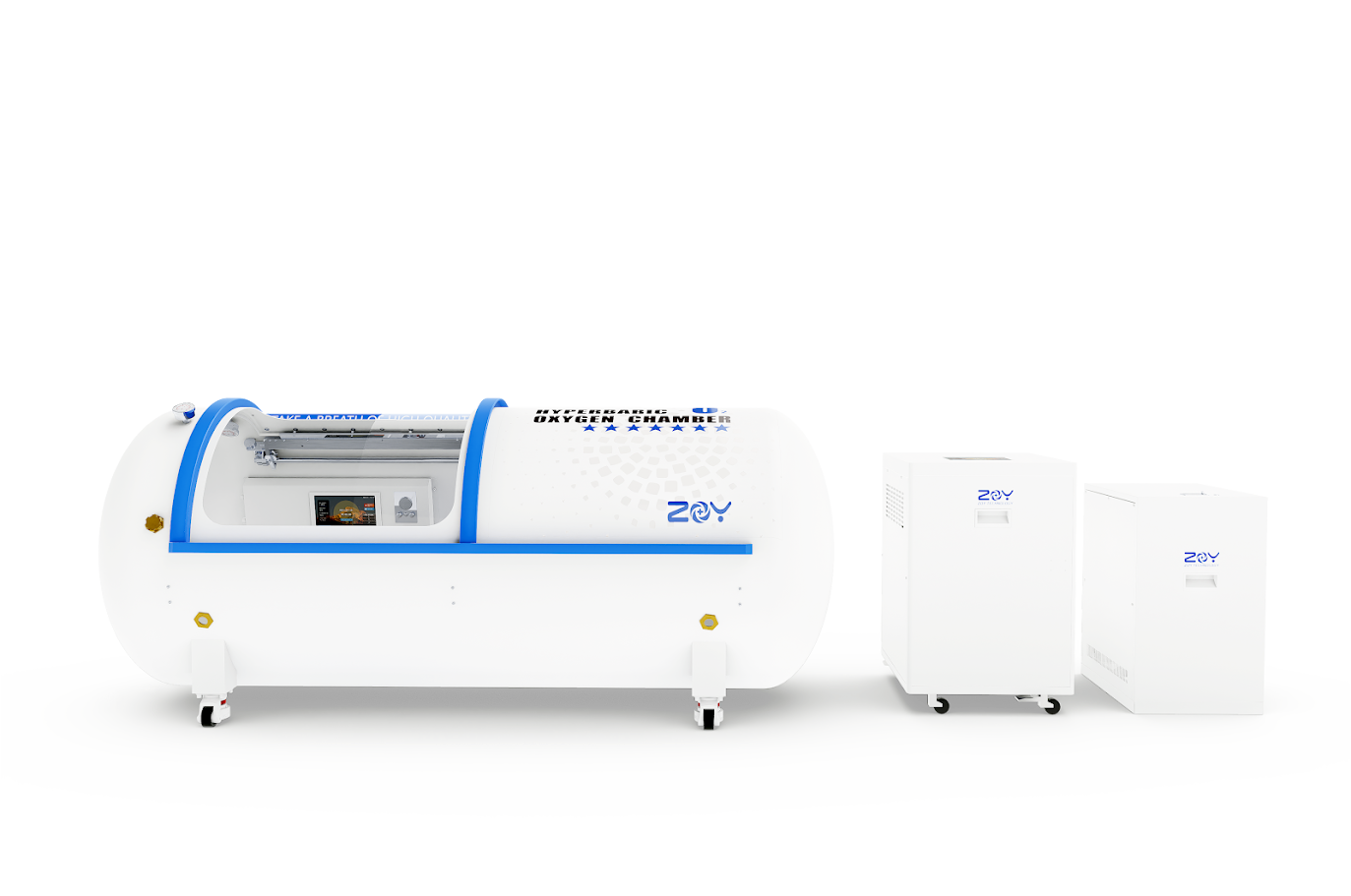

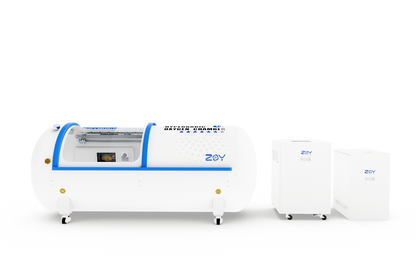

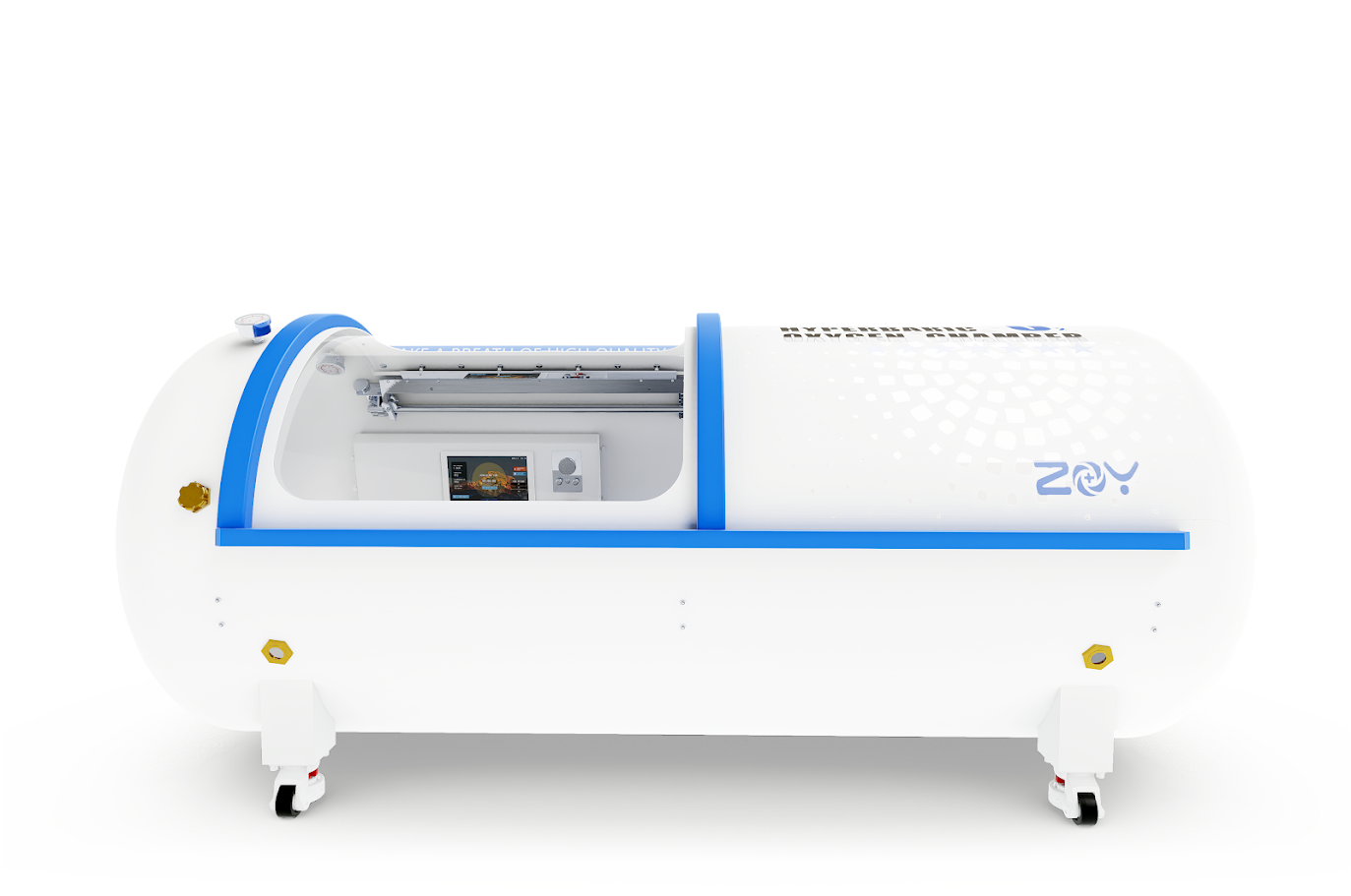

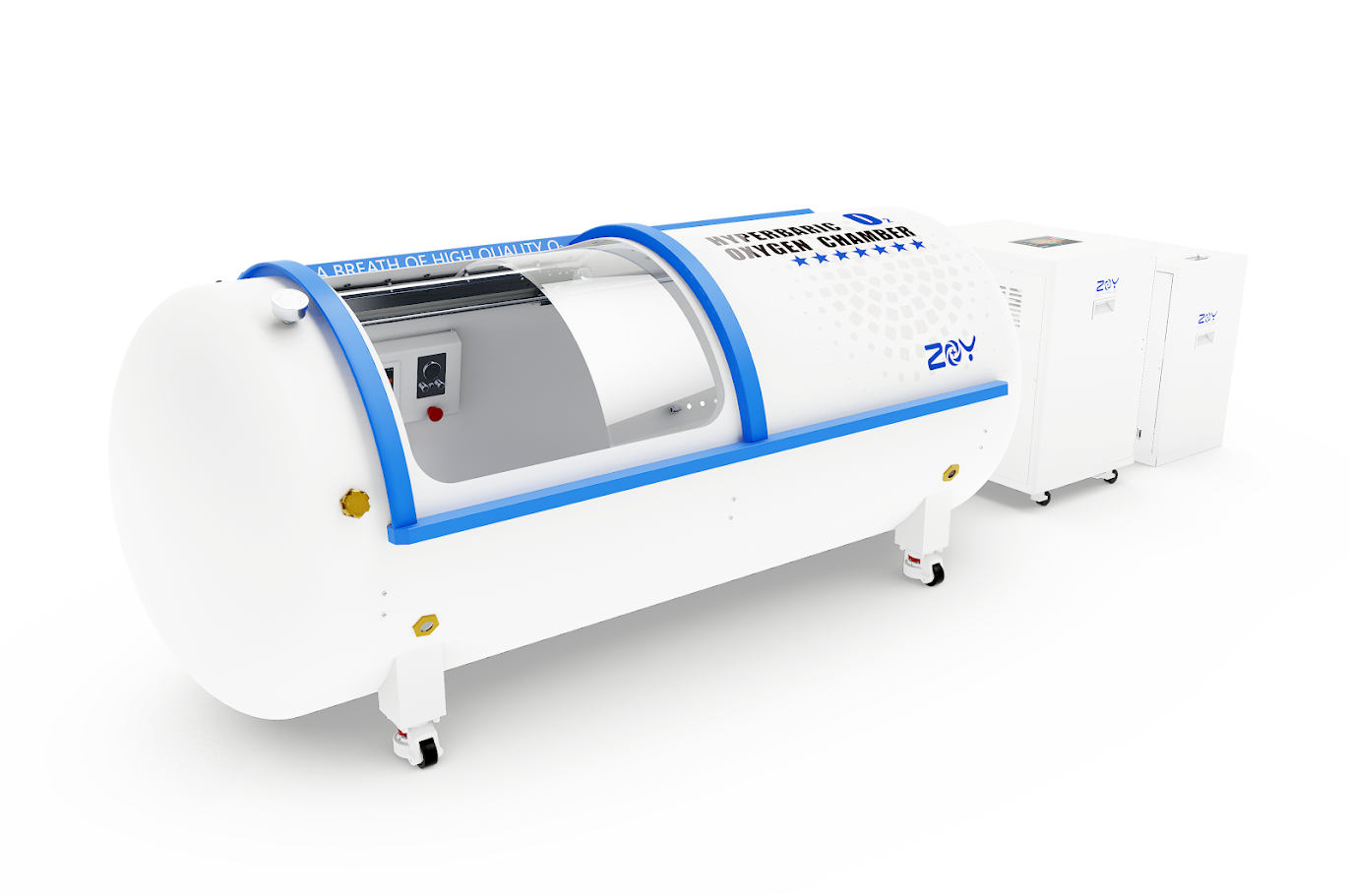

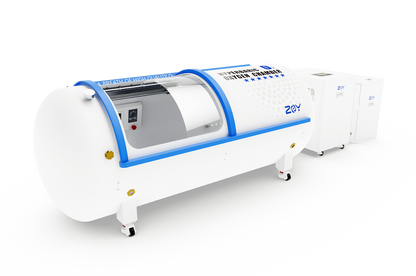

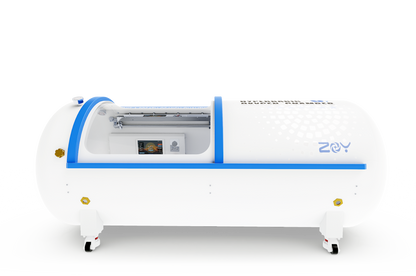

H920 — Hard-Lying Steel Oxygen Hyperbaric Chamber (Ø35.4" × 88.6") • Adjustable 1.3–2.0 ATA • 3-in-1 20 L/min System

The H920 is a heavy-duty, horizontal (hard-lying) steel oxygen chamber engineered for professional-level home wellness, clinic or recovery suites that require a robust, reliable pressurized environment. Built from steel with advanced safety systems, the H920 supports adjustable working pressures from 1.3 to 2.0 ATA (user-selectable) and includes an integrated 3-in-1 system (oil-free air compressor, 20 L/min oxygen concentrator and refrigeration cooler) plus a dedicated oxygen booster. Designed for dependable operation, the H920 features multiple automatic relief valves, bi-directional manual relief, internal/external pressure gauges, a Built-In Breathing System (BIBS), interior/exterior touch panels and two-way speakers — all organized for safe, comfortable, and controllable oxygen-enriched sessions.

Key features

• Heavy-gauge steel hard-lying chamber for stability and longevity
• Adjustable working pressure: 1.3–2.0 ATA (approx. 19.1–29.4 psi absolute; gauge ≈ 4.4–14.7 psi)
• Multiple overpressure protections: 3 automatic pressure relief valves + 1 bi-directional manual relief valve
• Dual pressure gauges (inside and outside) for precise monitoring
• Built-In Breathing System (BIBS) for direct oxygen delivery when required
• Inner and external touchscreen operation panels (7" color touch panel on the 3-in-1 unit)
• Two-way speakers for communication and session audio
• Integrated 3-in-1 console: oil-free air compressor + 20 L/min oxygen concentrator + refrigeration cooler
• Onboard oxygen booster for up to 0–700 kPa (0–~101.5 psi) outlet pressure

Technical specifications (imperial units)

• Model: H920
• Chamber material: Steel (hard-lying/horizontal configuration)
• Chamber size: Ø35.4" × 88.6" (diameter × length) — approx. 900 mm × 2250 mm
• Working pressure (adjustable): 1.3–2.0 ATA (≈ 19.1–29.4 psi absolute; gauge ≈ 4.4–14.7 psi)
• Overpressure protection: 3 automatic relief valves; 1 bi-directional manual relief valve
• Pressure monitoring: 2 pressure gauges (internal + external)
• Breathing system: BIBS (Built-In Breathing System)
• Communications: interior/exterior touch panels; two-way speakers

3-in-1 machine (console) — imperial equivalents

• Unit dimensions (approx.): 23.6" × 21.7" × 47.2" (600 × 550 × 1200 mm)
• Air compressor flow: 87–118 L/min (≈ 3.07–4.17 CFM)
• Compressor type: Oil-free
• Oxygen concentrator flow rate: 20 L/min (≈ 0.71 CFM)
• Oxygen purity: 90–96% (typical)
• Cooling method: Refrigerant-based air cooler
• Control: 7" color touch panel

Oxygen booster (imperial equivalents)

• Unit dimensions (approx.): 21.7" × 15.7" × 26.0" (550 × 400 × 660 mm)
• Oxygen flow rate: 0–30 L/min (0–≈1.06 CFM)
• Oxygen outlet pressure: 0–700 kPa (≈ 0–101.5 psi)
• System control: automatic control via integrated 3-in-1 machine

What’s included

• H920 hard-lying steel oxygen chamber
• 3-in-1 console (air compressor + 20 L/min oxygen concentrator + air cooler)
• Oxygen booster unit
• User manual and operation guide
• Installation & safety checklist
• Basic maintenance kit (filters, seals)

Use cases (compliant language) Engineered for wellness centers, recovery clinics and dedicated at-home facilities seeking a robust pressurized oxygen environment for relaxation and supplemental oxygen exposure sessions. Not sold as a medical cure or treatment. Consult a healthcare professional before use if you have respiratory, cardiac, or other significant health conditions.

*This product is ordered straight from the manufacturer and will take approximately 45 days

To be sold to medical professionals or individuals than have medical doctor recommendation. This will be verified upon shipment

Safety & regulatory notes

• These are pressurized oxygen systems. Strictly follow operator manual safety rules. Keep all ignition sources and flammable materials away from the chamber.
• Do not claim medical cures or disease treatment on marketing content unless you hold the necessary medical device approvals for your sales region.
• Professional installation and commissioning are strongly recommended
